Introduction

Data visualization isn’t just about making numbers look good—it’s about telling a story with data. When done right, it makes complex information digestible, highlights hidden insights, and drives better decision-making. Businesses rely on clear, intuitive dashboards to monitor performance, analysts use visualizations to spot trends, and marketers leverage data storytelling to engage audiences. But when visualization goes wrong? It creates confusion, misleads decision-makers, and undermines the credibility of the data itself.

A bad data visualization isn’t just an aesthetic issue—it can warp perception, exaggerate trends, or completely obscure the truth. From bad dashboard examples cluttered with unnecessary data to common problems in data visualization like distorted scales and misleading comparisons, these mistakes can have real-world consequences. Inaccurate or poorly designed visuals can lead to flawed business strategies, misallocation of resources, or even public misinformation. In short, bad data visualization isn’t just ineffective—it’s dangerous.

So how do you ensure your visualizations enhance understanding instead of clouding it? This guide will break down the most common data visualization mistakes and show you how to apply data visualization principles and techniques to create clear, accurate, and impactful visuals. Whether you're designing reports, dashboards, or presentations, these insights will help you avoid critical mistakes and turn your data into a compelling, trustworthy narrative.

Fundamentals of Effective Data Visualization

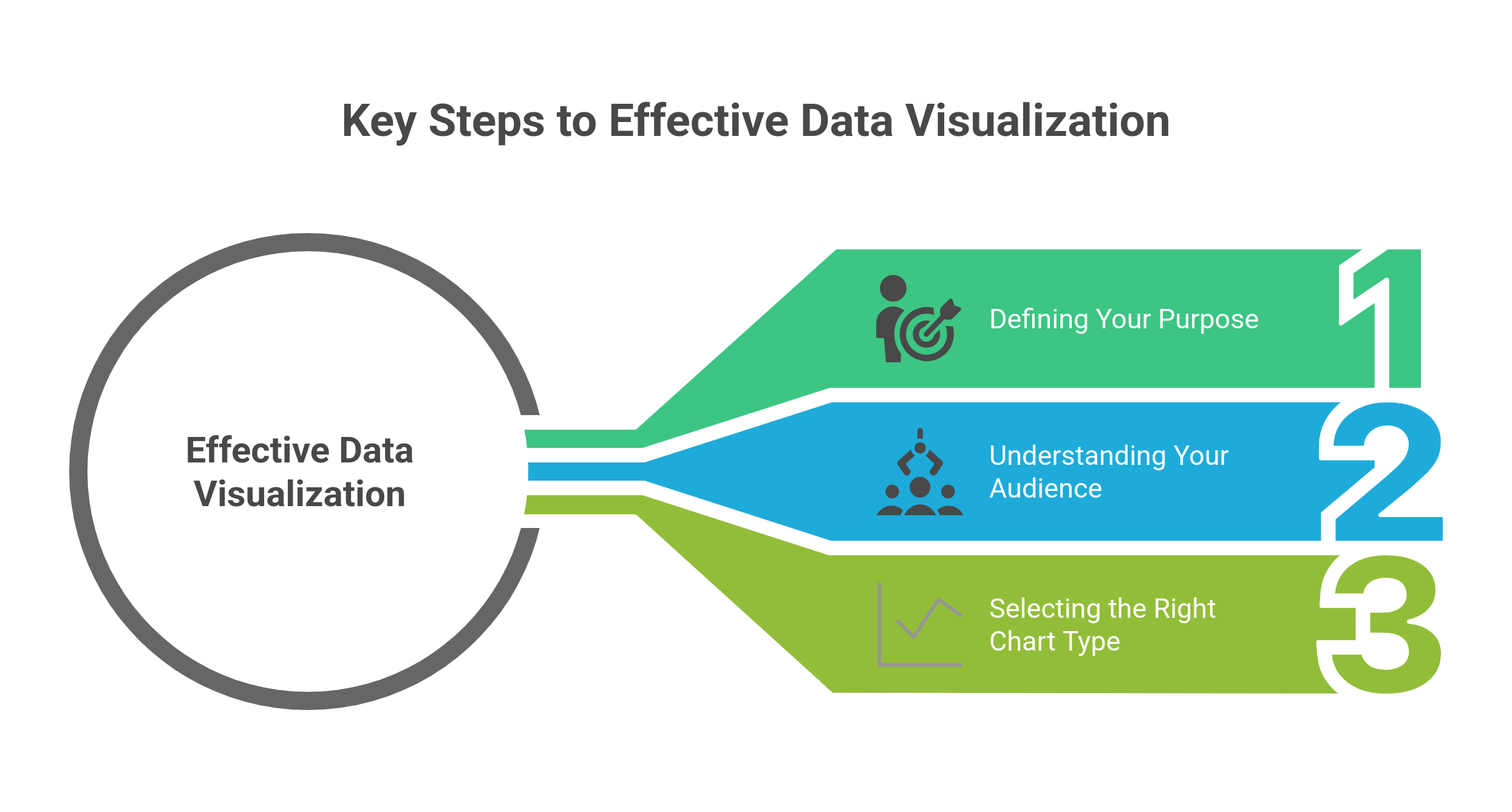

graphic showing the fundamentals of effective data visualization

Creating effective data visualizations isn’t just about aesthetics—it’s about clarity, accuracy, and impact. Every chart, graph, or dashboard should serve a clear purpose, be tailored to its audience, and use the right visual format to communicate information effectively. Here’s how to get it right from the start.

Defining Your Purpose

Before selecting a chart type or color scheme, ask yourself: What is the core message of this visualization? Are you highlighting trends, comparing data points, or illustrating relationships? A well-defined purpose ensures that your visualization remains focused and doesn’t overwhelm the viewer with unnecessary information.

For example, if your goal is to show how sales have grown over time, a line chart would be ideal. If you’re comparing market share among competitors, a bar chart might work better. Without a clear objective, visualizations risk becoming cluttered or misleading, diluting the impact of the data.

Understanding Your Audience

Not all audiences interpret data the same way. A finance executive, a data scientist, and a marketing manager might all look at the same graph but draw different insights based on their expertise. This is why audience awareness is crucial when designing visualizations.

For data-savvy audiences (e.g., analysts, technical teams): More complex visualizations, like scatter plots or heatmaps, may be appropriate since they can interpret dense datasets with minimal guidance.
For general audiences (e.g., stakeholders, customers, or executives): Keep visuals simple, with clear labels, annotations, and summaries. Avoid overly technical elements that might require extra explanation.
For mixed audiences: Provide layered insights—start with a high-level summary and offer deeper insights through interactive elements or additional charts.

The key is to eliminate cognitive overload by presenting only the necessary details in a format that the audience can quickly grasp.

Selecting the Right Chart Type

Not all charts are created equal. Choosing the wrong one can lead to confusion, misinterpretation, or even data distortion. Here’s a quick guide to selecting the right chart type based on your data and objectives:

Comparison: Use bar charts or column charts to compare different categories.
Trends Over Time: Use line charts to show progressions, patterns, or fluctuations.
Proportions & Distribution: Use pie charts sparingly (only when comparing a few categories) and donut charts for improved readability. Histograms work well for frequency distributions.
Relationships & Correlations: Use scatter plots or bubble charts to visualize relationships between variables.
Hierarchical Data: Use treemaps or sunburst charts to display nested relationships.
Geospatial Data: Use maps when location-based insights are crucial.

A bad data visualization example would be using a pie chart to show changes over time—since pie charts represent static proportions, they fail to illustrate trends effectively. Similarly, using a 3D chart for simple comparisons often makes it harder to read and interpret data accurately.

The Psychology Behind Data Perception

Data visualization isn’t just about numbers—it’s about how the human brain processes and interprets visual information. Even the most accurate data can be misunderstood if it’s not presented in a way that aligns with how people naturally perceive patterns, relationships, and emphasis. To create effective visualizations, we need to understand how the mind processes data, the impact of cognitive biases, and how to apply Gestalt principles and visual hierarchy to guide attention.

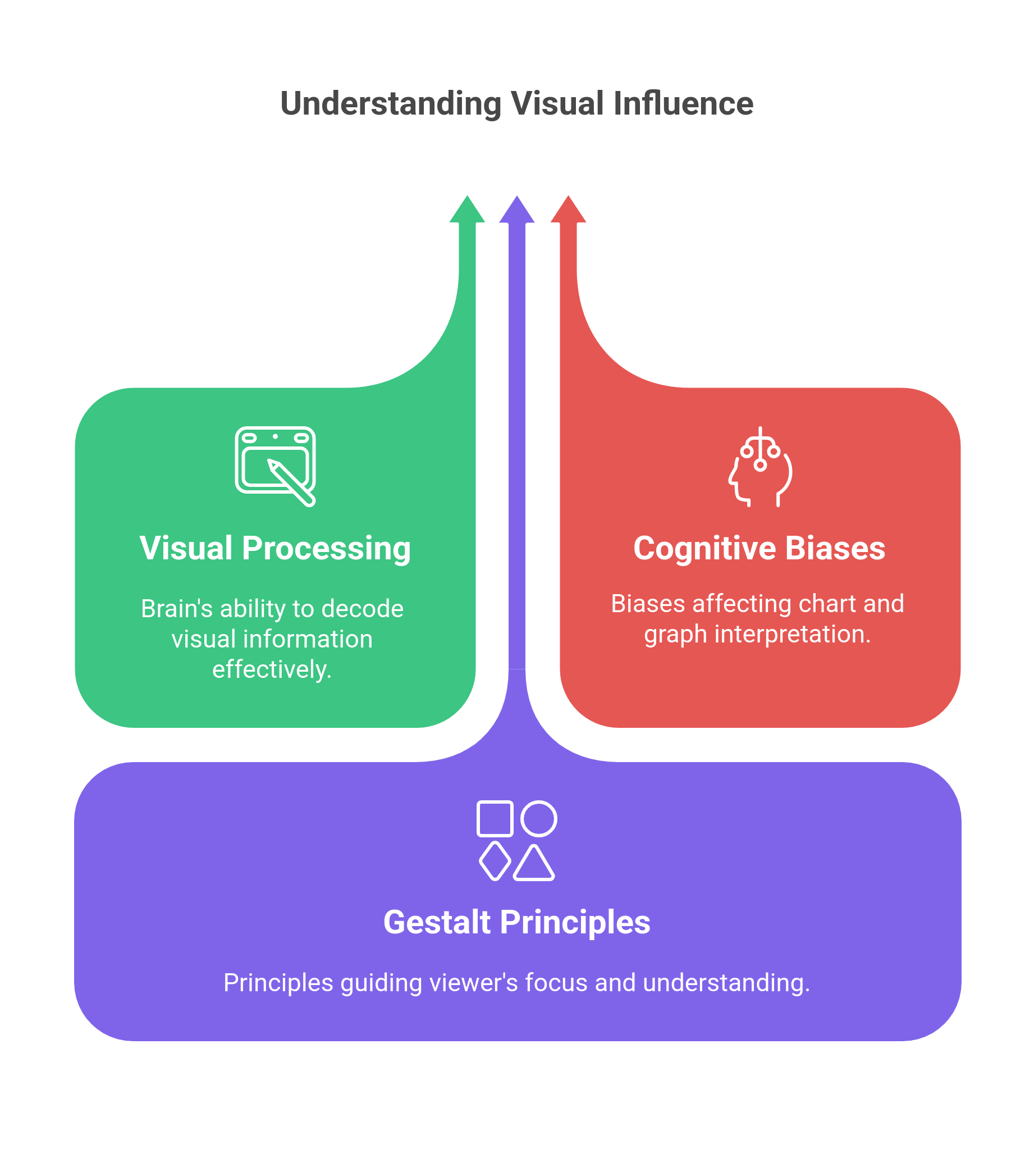

graphic showing the psychology behind data perception

How the Human Brain Processes Visual Information

The brain is wired to process visuals far faster than text—research shows that we interpret images 60,000 times faster than words. This is why well-designed data visualizations can make complex insights instantly understandable, while poor design can lead to confusion or misinterpretation.

Pre-attentive Processing: Our brains quickly pick up on visual cues like color, size, and position before we consciously analyze the data. This is why a well-placed bold red line in a sea of gray can immediately draw attention to a key trend.
Pattern Recognition: We naturally seek patterns in data—whether it’s identifying clusters in a scatter plot or spotting a rising trend in a line chart. However, this can also lead to false correlations if the visualization isn’t designed carefully.
Cognitive Load: When a chart is cluttered or overloaded with information, it forces the brain to work harder to extract insights. This is why simplified, well-structured visuals are far more effective.

Role of Cognitive Biases in Interpreting Charts and Graphs

Even with accurate data, our brains are prone to cognitive biases—systematic ways of thinking that can distort how we interpret visualizations. Understanding these biases can help prevent misleading charts and dashboards.

Confirmation Bias: People tend to interpret data in a way that aligns with their existing beliefs. A poorly designed chart can unintentionally reinforce biases instead of challenging them.
Anchoring Effect: The first piece of information we see (such as an exaggerated y-axis starting at 50 instead of 0) can disproportionately influence how we perceive the entire dataset.
Proportionality Bias: People often misjudge the size of visual elements. For example, in bad data visualization examples, a bar chart with inconsistent scaling can make small differences seem much larger than they actually are.

Using Gestalt Principles and Visual Hierarchy to Guide Attention

Gestalt principles, derived from psychology, explain how people perceive and organize visual elements. Applying these principles ensures that your data visualizations guide attention to the most important insights without overwhelming the viewer.

Proximity: Elements that are placed close together are perceived as related. In dashboard design, grouping related metrics together enhances readability and interpretation.
Similarity: When colors, shapes, or styles are consistent, they create a visual connection. A common bad dashboard example is using too many random colors, making it hard to differentiate between related data points.
Figure-Ground: The brain distinguishes between foreground and background. High-contrast elements naturally pop, making them effective for emphasizing key data points.
Continuity: People follow lines, curves, and sequences. Line charts, for instance, work well because they leverage this natural tendency to track movement over time.
Closure: The mind fills in missing gaps to form a complete picture. Dashboards that align elements properly, without unnecessary borders or separators, feel more intuitive.

The Most Common Data Visualization Mistakes (and How to Avoid Them)

Data visualization is meant to simplify complex information, but when done incorrectly, it can create confusion, misinterpretation, and even misleading narratives. Many visualization mistakes stem from poor design choices, lack of audience awareness, or a failure to follow fundamental visualization principles.

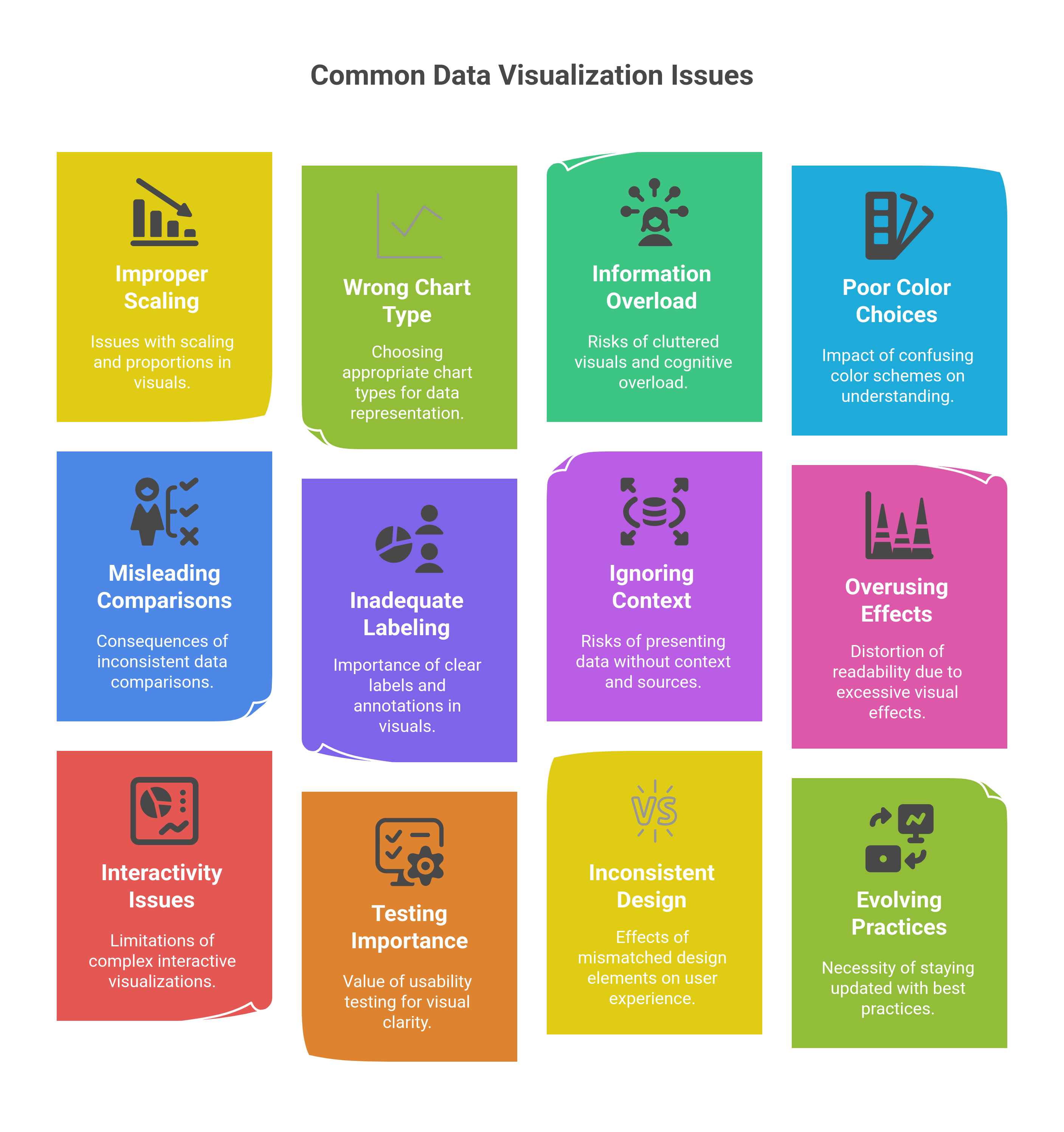

graphic showing top 12 data visualization mistakes

Below, we’ll explore the 12 most common mistakes and how to avoid them with practical strategies and best practices.

Distorted Representations of Data

The Problem: One of the biggest pitfalls in data visualization is misrepresenting data through improper scaling, truncated axes, and exaggerated proportions. This can make small changes appear more dramatic or downplay critical insights. A common example is a truncated y-axis, where the axis does not start from zero. This can make a minor fluctuation in data seem like a drastic increase or decrease, misleading the viewer. Another issue is inconsistent scaling between multiple visualizations. If a company presents revenue growth using different y-axis intervals in different charts, viewers may struggle to make accurate comparisons.

How to Avoid It:
1. Always start axes at zero unless absolutely necessary: If an alternative starting point is required, clearly indicate it to prevent misinterpretation.
2. Maintain proportional accuracy in visual elements: For example, in bar charts, ensure bar lengths accurately represent differences in values.
3. Use consistent scales when comparing multiple datasets: If two charts display similar metrics but have different axis intervals, comparisons become meaningless.
4. Avoid unnecessary 3D effects, which can distort perception by making some elements appear larger than they actually are.
Choosing the Wrong Chart Type

The Problem: Not every dataset fits well into every chart type. The wrong choice can obscure key insights, making it difficult for the audience to understand the data. For instance, a pie chart is often misused for comparing more than a few categories, leading to difficulty in distinguishing between slices of similar size. Similarly, a line chart should not be used to compare categorical data, as it suggests a continuous trend where none exists.

How to Avoid It:
1. Use bar charts for categorical comparisons, not line graphs. Line graphs are best suited for time-series data.
2. Avoid using pie charts for more than five categories. If more categories are necessary, consider a bar chart instead.
3. Use scatter plots to show relationships between variables, not bar charts. A scatter plot is better for showing correlation, while a bar chart is ideal for comparing discrete values.
4. Consider your audience’s familiarity with chart types. If they are unfamiliar with more complex visualizations (e.g., heatmaps), provide explanations or alternative charts for clarity.
Overloading with Too Much Information

The Problem: Data visualizations should be clear and focused, but too often, they are overloaded with excessive data points, cluttered legends, and unnecessary details. This increases cognitive load, making it difficult for the audience to extract key insights. A dashboard filled with too many metrics, overlapping labels, or excessive colors can overwhelm users, making the visualization ineffective.

How to Avoid It:
1. Prioritize key insights. Remove unnecessary elements that do not contribute to the core message.
2. Use data filtering and interactivity wisely. Instead of displaying all data at once, allow users to explore different layers of information.
3. Limit the number of colors and labels. Too many colors can confuse viewers, while overlapping labels make charts hard to read.
4. Break complex data into multiple visualizations. Instead of overloading a single chart, use small multiples or dashboards to display different aspects of the data separately.
Poor Color Choices and Accessibility Issues

The Problem: Color plays a crucial role in guiding attention, but poor color choices can lead to misinterpretation, confusion, or inaccessibility for colorblind users. Common mistakes include:
1. Using red and green together can be difficult for colorblind individuals to distinguish.
2. Applying too many colors in a single visualization makes it harder to focus on key insights.
3. Choosing colors that lack contrast, reducing readability.
How to Avoid It:
1. Use colorblind-friendly palettes. Tools like ColorBrewer can help select accessible color schemes.
2. Use contrast effectively. Dark text on a light background or vice versa improves readability.
3. Use color sparingly. Too many colors can make a chart harder to interpret. Instead, use different shades of a single color for subtle variations.
4. Always provide alternative indicators, such as patterns, labels, or annotations, to ensure the message is clear even without color differentiation.
Misleading Data Comparisons

The Problem: Inconsistent scales, cherry-picked data points, and improper comparisons can distort the truth, leading to misleading conclusions. For example, comparing absolute numbers instead of percentages can be deceptive when analyzing datasets of different sizes. Similarly, ignoring inflation in financial data can give a false impression of growth.

How to Avoid It:
1. Ensure fair comparisons: Use relative metrics (e.g., percentages) rather than absolute values when necessary.
2. Standardize scales across multiple charts: A sudden change in y-axis intervals between charts can lead to false conclusions.
3. Always provide context: Without clear labels, sources, or baselines, data comparisons can be misinterpreted.
Inadequate Labeling and Annotations

The Problem: Missing labels, unclear legends, and ambiguous axis titles can leave viewers struggling to understand a visualization’s purpose. For example, a scatter plot without axis labels forces the viewer to guess what’s being measured, while a bar chart missing a legend can create confusion about category meanings.

How to Avoid It:
1. Always include clear axis labels and legends.
2. Use annotations where necessary. Call out key data points or trends to help guide interpretation.
3. Ensure font size is readable. Tiny text makes it difficult to interpret data, especially in dashboards.
Ignoring Context and Source Transparency

The Problem: A visualization without proper context can lead to misinterpretation and misleading conclusions. Data doesn’t exist in a vacuum—external factors, assumptions, and timeframes heavily influence its meaning. When context is omitted, viewers may draw incorrect conclusions, leading to poor decision-making.
For instance, if a company presents a chart showing a sharp increase in quarterly revenue, but fails to mention that this growth is due to seasonal trends, the data might appear more impressive than it actually is. Similarly, omitting important external factors—like market downturns, inflation adjustments, or policy changes—can make insights seem deceptive or incomplete. Additionally, failing to cite data sources raises credibility concerns. A visualization without a clear reference to data origins leaves audiences questioning its reliability and potential biases.

How to Avoid It:
1. Always provide context. Label important timeframes, clarify external influences, and mention any assumptions behind the data.
2. Clearly state data sources. Whether using internal company data or publicly available datasets, providing sources increases transparency.
3. Indicate missing or incomplete data. If a dataset lacks certain values or includes estimated figures, disclose it to avoid misleading interpretations.
4. Avoid cherry-picking data. Selective reporting—such as showing only favorable data points—can create a false impression. Instead, present a balanced view, even if the insights aren’t all positive.
5. Use footnotes or annotations. These can be helpful for providing additional details without overwhelming the visualization itself.
Overusing 3D and Unnecessary Visual Effects

The Problem: Many designers assume 3D charts and flashy visual effects make data more engaging. However, these elements often distort the readability and accuracy of a visualization. One of the biggest issues with 3D bar charts and pie charts is perspective distortion. In a 3D pie chart, for example, the front-facing slice appears larger than it actually is, while the back slices look smaller—even if they represent the same value. This skews perception, leading viewers to overestimate or underestimate certain categories.

Another issue is excessive use of gradients, shadows, and unnecessary animations. While these effects may look aesthetically pleasing, they can distract from the actual data. If a dashboard has animated transitions, glowing effects, or overly vibrant colors, the audience might focus more on the design than the insights being presented.

How to Avoid It:
1. Stick to 2D visualizations whenever possible. They are clearer, easier to interpret, and prevent visual distortion.
2. Avoid using 3D effects unless necessary. If you must use 3D elements, ensure they don’t alter the perceived value of the data.
3. Keep design elements minimal and functional. Avoid unnecessary animations, shadows, and special effects that don’t add value.
4. Prioritize clarity over aesthetics. A simple, well-designed 2D bar chart is far more effective than a flashy but misleading 3D visualization.
Over-Reliance on Interactivity

The Problem: Interactive dashboards and charts allow users to explore data dynamically, but overusing interactivity can make insights harder to grasp at a glance. A common issue arises when critical data is hidden behind interactions—requiring users to hover, click, or filter to view essential insights. If stakeholders are forced to explore multiple layers just to find key takeaways, the visualization loses effectiveness. Additionally, too much interactivity can lead to inconsistent user experiences. Some viewers may interact with the dashboard in one way, while others may explore different views—resulting in varying interpretations of the same dataset.

How to Avoid It:
1. Ensure key insights are visible without interaction. The most important takeaways should be immediately clear without requiring users to click or hover.
2. Use interactivity as an enhancement, not a requirement. Interactive elements should provide additional depth, not act as barriers to understanding.
3. Test usability across different devices. Interactive dashboards may function well on desktops but can be frustrating on mobile devices with limited screen space.
4. Provide static summary views. If an interactive chart is used, consider also including a static version that summarizes key insights in a snapshot format.
Failing to Test and Iterate

The Problem: Many data visualizations are published without adequate testing, leading to misinterpretations, usability issues, or overlooked errors. Just because a chart looks clear to the creator doesn’t mean it will be intuitive for the audience. For instance, a dashboard with complex filtering options might make perfect sense to the data team but confuse non-technical users. Similarly, a chart that lacks proper labels or uses hard-to-distinguish colors may frustrate viewers rather than inform them.

How to Avoid It:
1. Conduct usability testing. Before finalizing a visualization, test it with a sample audience. Gather feedback on clarity, ease of interpretation, and overall effectiveness.
2. Refine based on user feedback. Identify common pain points and make necessary adjustments.
3. Check for data accuracy. Verify that all numbers, labels, and visual elements correctly represent the underlying data.
4. Perform A/B testing. If unsure about different design choices, test multiple versions and analyze which one is more effective in conveying insights.
Inconsistent Design Across Visuals

The Problem: A lack of consistency in colors, fonts, scales, and layouts can make a series of visualizations difficult to interpret cohesively. If one chart uses blue for revenue and another uses blue for expenses, viewers may struggle to make accurate comparisons. Similarly, using different font sizes and styles across multiple visualizations creates a disjointed experience, making it harder to scan and analyze insights quickly.

How to Avoid It:
1. Establish a style guide for data visualization. Define color schemes, font choices, and formatting rules to ensure consistency.
2. Use standardized color coding. If "revenue" is always represented in green, maintain this color across all charts.
3. Keep scales and axis formats consistent. If one bar chart uses a 0-100 scale, avoid switching to a 0-500 scale in another chart measuring the same variable.
4. Ensure uniform spacing and layout. Align charts properly within reports or dashboards to create a visually cohesive experience.
Neglecting Evolving Best Practices

The Problem: Data visualization is a constantly evolving field, with new techniques, tools, and research emerging regularly. Failing to stay updated means missing out on improvements that can enhance clarity, accuracy, and engagement. For example, older dashboards may rely on static, hard-to-read pie charts, while modern best practices encourage simpler alternatives like bar charts or small multiples for better comparison. Additionally, emerging AI-driven visualization tools and automated insights are reshaping how data is presented, making it essential for professionals to stay informed about industry advancements.

How to Avoid It:
1. Stay updated with industry research: Follow leading data visualization experts and organizations for the latest insights.
2. Regularly review and refine existing dashboards: If visualization is outdated or ineffective, update it using modern best practices.
3. Experiment with new visualization techniques: Explore innovative approaches like network graphs, heatmaps, and geospatial visualizations where relevant.
4. Use modern tools that incorporate best practices: Platforms like Tableau, Power BI, and D3.js continually introduce improvements that enhance usability and clarity.

Bad Data Visualizations and How to Fix Them

Data visualization is a powerful tool—when done right. However, bad dashboards and poorly designed visualizations can lead to confusion, misinterpretation, and even costly business mistakes. In this section, we’ll break down some bad data visualization examples, analyze what makes a bad data visualization, and highlight common problems in data visualization—along with actionable ways to fix them.

Bad Dashboard Examples

A sales dashboard that overwhelms instead of informing: Imagine a corporate sales dashboard meant to help executives track revenue and sales performance. Instead of providing clear insights, it presents:
1. 10+ different chart types crammed onto a single screen
2. Multiple pie charts with too many slices, making it hard to compare proportions
3. Excessive use of colors and 3D effects, making the data harder to read
4. No clear hierarchy, forcing users to search for the most important KPIs
Why It Fails:
1. Cognitive overload—too much information without a clear focus
2. No prioritization of key insights—decision-makers struggle to find what truly matters
3. Poor choice of visual elements—ineffective use of pie charts, 3D visuals, and color
How to Fix It:
1. Prioritize clarity, only display the 3-5 most critical metrics upfront
2. Use a clean, grid-based layout to separate different data points effectively
3. Replace excessive pie charts with bar charts or line graphs for better comparison
4. Limit colors and effects to avoid unnecessary distractions

Bad Data Visualization Examples

A truncated Y-Axis that distorts reality: A news article presents a bar chart comparing annual inflation rates between two countries. However, the Y-axis starts at 5% instead of 0%, making one bar appear drastically taller than the other, despite only a small percentage difference.

Why It Fails:
1. Exaggerates differences—misleading the audience into thinking there’s a huge gap
2. Manipulates perception—viewers might assume one country is struggling significantly more than it is
3. Lacks transparency—leads to misinformed decisions based on distorted data
How to Fix It:
1. Always start the Y-axis at zero (unless there’s a justified reason not to)
2. Use bar lengths proportionate to actual values to prevent misrepresentation
3. Add clear labels and context to avoid misleading interpretations

What Makes a Bad Data Visualization? Key Red Flags

Lack of Context – Data without background information is meaningless.
Inconsistent Scales – Comparing a 10-year trend with a 6-month trend on the same axis distorts analysis.
Overcomplicated Design – Too many colors, 3D effects, or unnecessary elements confuse viewers.
Data Manipulation – Omitting data points or adjusting axes to exaggerate results misleads audiences.

Golden Rule - Data visualization should enhance understanding, not distort it.

Conclusion

Effective data visualization is more than just creating visually appealing charts—it’s about presenting information in a way that is clear, accurate, and meaningful. Poorly designed visuals can lead to confusion, misinterpretation, and even costly decisions. From misleading charts to cluttered dashboards, common mistakes can easily compromise the integrity of the insights being conveyed.

By prioritizing clarity, choosing the right visual formats, and ensuring accessibility, you can transform raw data into a powerful storytelling tool. Thoughtful design and careful consideration of how audiences interpret visuals can make all the difference in turning complex information into actionable insights.

As best practices continue to evolve, staying informed and refining your approach will help ensure that your visualizations remain both effective and trustworthy. After all, the goal isn’t just to display data—it’s to make it understandable, insightful, and impactful.
